Types:

External diameter stroke: 6.5mm
External tube length: 81mm
Piston rod diameter: 2mm
Force: 2-45N
Stroke: 1-60mm
Cap: yes
1. The range of force can be customized, but subject to the diameter of the external tube and the diameter of the piston rod, 1KG≈10N (2N~45N)
2. The range of effective stroke can be customized, but it is constrained by the structure and force direction of the internal tube. (1~60mm)
3. The choice of connector, please to specify the type of connector before ordering; or you can contact customer service.

Details:

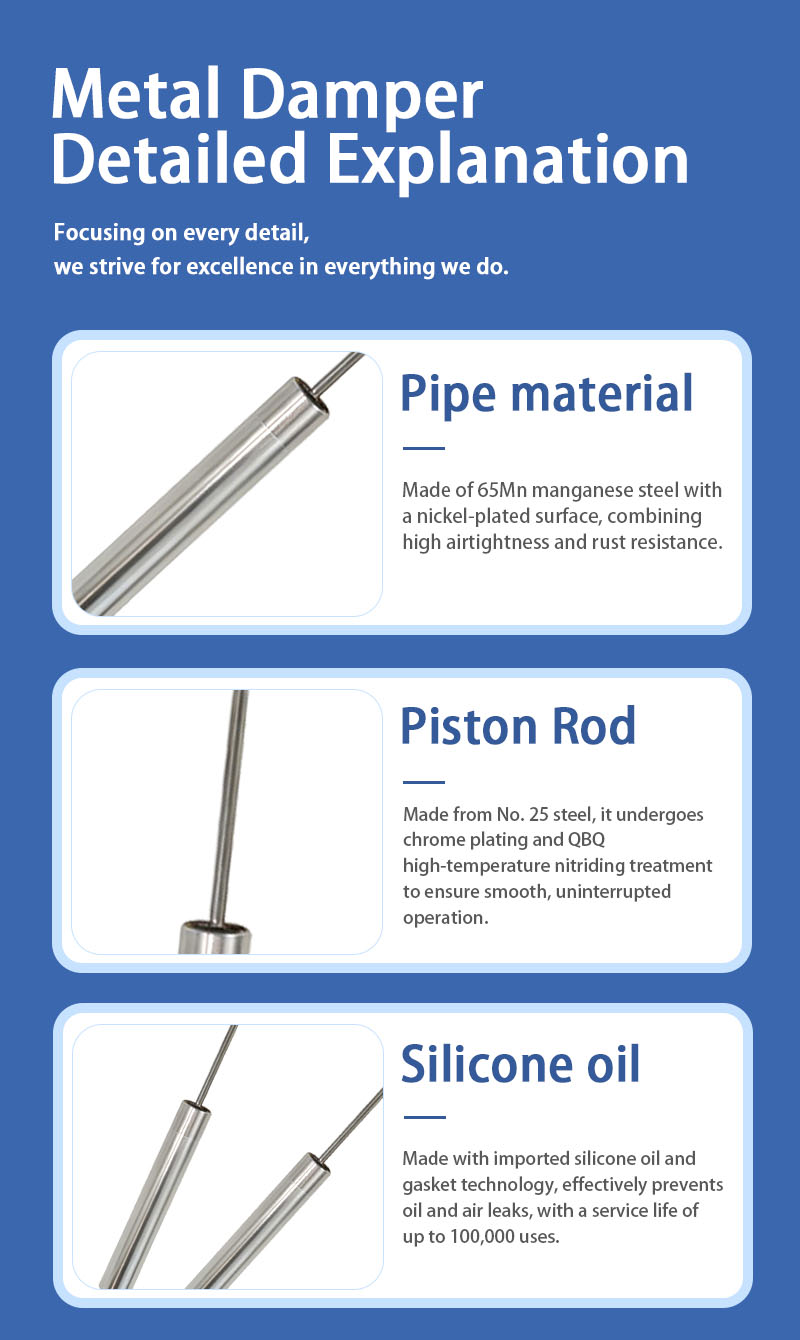

1. Piston rod adopts 25# carbon steel and 304 stainless steel solid rod, with chrome-plated surface and QBQ high-temperature nitriding treatment; smooth and non-stuck;

2. The tube body is made of 65Mn carbon steel, which is the high-density seamless steel tube, and the outer surface is plated with nickel to prevent air leakage and rust;

3. The production process of imported silicone oil and spacer is adopted to prevent oil leakage and air leakage, and the service life is more durable, reaching 100,000 times;

4. A variety of connectors can be selected; and can be customized, according to the specific requirements of the specific product then customizing connector colo,r size and style.
